Pharmaceutical Cold Room and GMP Storage Facilities

GMP-oriented refrigerated storage for vaccines, biologics and GLP-1 samples — from 2–8℃ holding warehouses to −65℃ cascade rooms with PLC and 4Q validation support. Howcool does not publish a GMP company certificate.

Request a Quote WhatsApp Engineering
Pharma Cold Chain

Rooms Built for Regulated Product Not a Paper Certificate

Pharmaceutical buyers searching for a pharmaceutical cold room, GMP cold storage or GMP refrigerated storage need a documented temperature band, redundant plant, audit-trail logging and a validation path. Howcool is a Beijing EPC contractor (since 2009, 24+ export countries) that designs, manufactures and commissions those rooms.

Language on this page follows the live site: the ultra-low project is described with 4Q validation and PLC monitoring; the Yizhuang warehouse is described as a GMP-compliant pharmaceutical warehouse. We do not upgrade that wording into a Howcool GMP or HACCP company certificate — those certificates are not listed among ISO 9001:2015, ISO/IEC 27001:2013, CE and Ministry of Commerce credentials.

Plant options on the catalogue include cascade HFC (R404A + R23/R508) down to −100℃ evaporator duty and a CO₂ cascade / transcritical system rated for −50℃ service. Electrical control is Siemens S7-200 SMART PLC with Schneider contactors and CHINT breakers, plus HMI and 24/7 cloud alarm.

Howcool ultra-low pharmaceutical cold storage
Published ultra-low case (2022): 400 m², 4 rooms, −60℃ to −65℃ operation, cascade R404A + R23/R508, evaporator capability to −100℃, ±0.5℃ control accuracy cited on the project record, N+1 refrigeration, 4Q validation support.

Who This Storage Is For

Vaccine and biologics manufacturers, hospital pharmacies, CRO stability labs and GLP-1 sample holders. Not a consumer freezer and not a food walk-in rebadged as pharma.

−65℃ Ultra-Low Pharma Storage
2022 · 400 m²

−65℃ Ultra-Low Pharma Storage

Four rooms, cascade plant, 4Q validation support. Vaccines, biologics and GLP-1 stability work.

View project →
Beijing Yizhuang Biotech Park
2023 · 1,200 m²

Beijing Yizhuang Biotech Park

2–8℃ / 45–75% RH warehouse with redundant refrigeration and 24/7 monitoring.

View project →

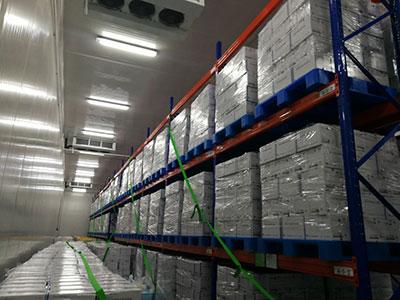

Hospital Cold Storage Room
2022

Hospital Cold Storage Room

Multi-zone medical cold storage for pharmaceuticals, vaccines and biological samples.

View project →
Plant

CO₂ Cascade / Transcritical

Low-GWP R744 cascade and transcritical systems. Published −50℃ service; Bitzer CO₂ compressors.

Open product →
Controls

Cold Room Monitoring

PLC, HMI and 24/7 SMS/email cloud — the logging layer validation teams actually audit.

Open page →

Howcool Solution Path

01

Brief

Set-point, product, redundancy and validation scope.

02

Design

Preliminary design in 24 hours; drawings and quote in 3–5 days.

03

Build

Factory production 20–30 days; PIR / blast panels for low-temp envelopes.

04

Qualify

Commissioning, PLC/HMI logging and 4Q support as specified on the project.

Pharma Procurement Questions

Does Howcool hold a GMP certificate?
No GMP company certificate is published on epccold.com. What is published: rooms built for GMP-oriented pharmaceutical storage, with 4Q validation support (Design, Installation, Operational, Performance qualification) on the −65℃ project, plus PLC monitoring. The Yizhuang case is described on the project card as a GMP-compliant pharmaceutical warehouse — that is a room duty, not a company certificate. HACCP is likewise not claimed as a Howcool certificate.
What temperature bands have you actually built?
Published cases include Beijing Yizhuang 1,200 m² at 2–8℃ / 45–75% RH (2023), a hospital multi-zone 2–8℃ room (2022), and a 400 m² / 4-room ultra-low project (2022) operating around −60℃ to −65℃ with cascade plant able to reach −100℃ at the evaporator. CO₂ cascade / transcritical plant is listed for −50℃ service on the product page.
Which refrigerants are used for ultra-low rooms?
The −65℃ project page describes a two-stage cascade: R404A high stage and R23 / R508 (R508B) low stage. The CO₂ cascade product is a separate low-GWP option reaching −50℃ with Bitzer CO₂ compressors. Selection is a project calculation — we do not publish a single default for every vaccine SKU.
Can you support validation and audit-trail logging?
Yes, as published: PLC monitoring, 4Q validation on the ultra-low project, and the remote-monitoring / HMI products provide data logging (HMI: 30-day USB export; cloud: 5-year tamper-evident retention). Those products mention HACCP/GDP-ready reports as a software feature — not as a Howcool certificate.
What should a tender pack include?
Set-point and tolerance, product list (vaccines, biologics, GLP-1 samples), redundancy (the ultra-low project cites N+1), humidity band if required, door and airlock layout, and whether 4Q protocols are in the owner’s scope. Howcool will return a preliminary design within 24 hours of a complete brief.

Brief a Pharmaceutical Cold Room

Tell us set-point, volume, redundancy and whether 4Q protocols sit with the owner or the contractor.
